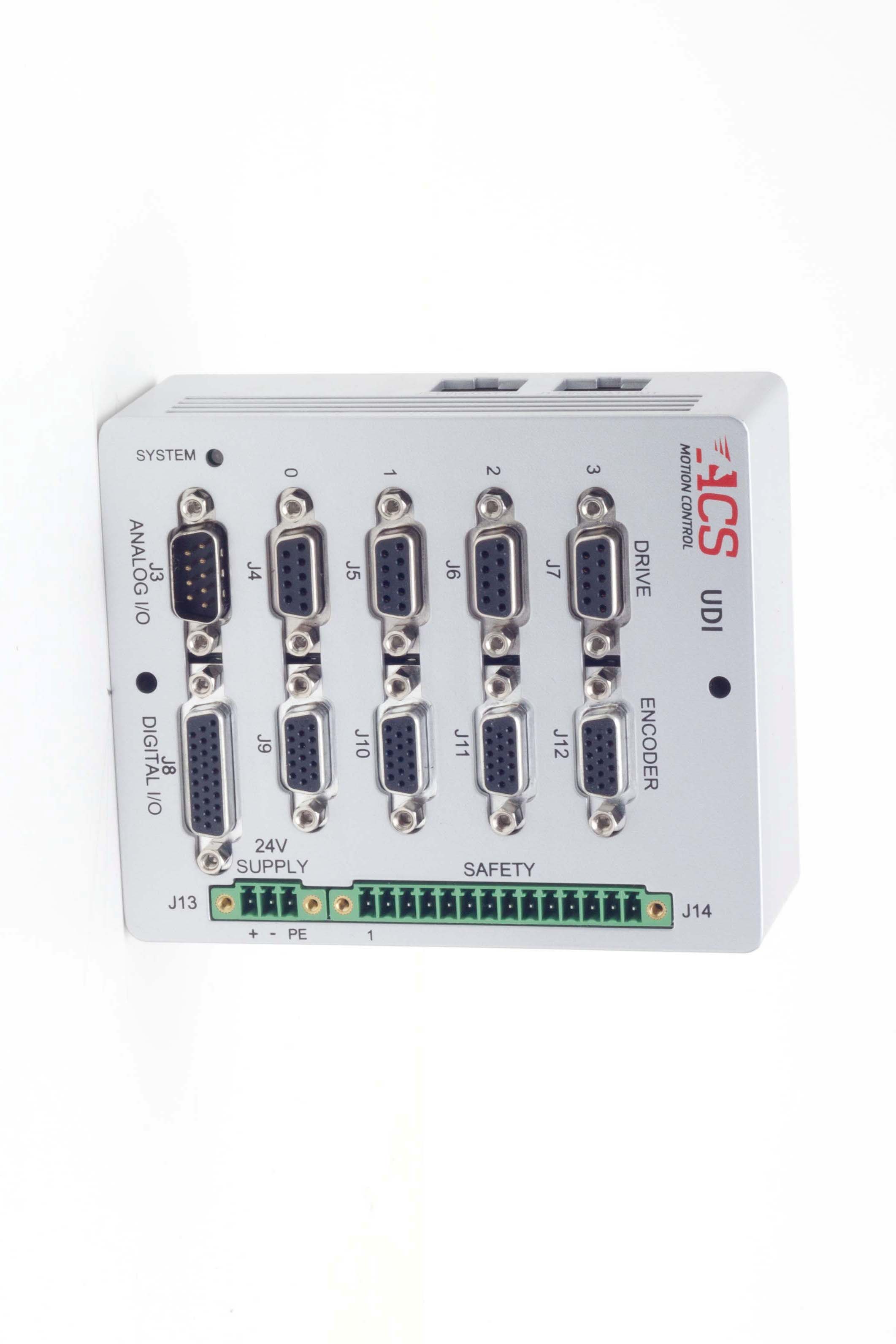

UDIhp-lt总线模拟量控制模块
![](/uploadfiles/2022/04/20220418143119417.jpg)
• Commanding Motor Drives with ±10V Interface,
such as linear drives and piezo motor drives
• Outstanding performance
ServoBoost, powerful control algorithms
20kHz sampling and update rate
Sinusoidal commutation
• Feedback
Two or Four channels
Standard: Digital incremental
Optional: Absolute (up to two), Sin-Cos (up to four)
• Digital I/O: 4 Registration MARK inputs,
1 PEG and 4 motor brake (24V, 0.2A) outputs
4 dedicated general purpose inputs
• Analog I/O: 2 inputs, 1 output
• Compact footprint: 121x100x48 mm3
such as linear drives and piezo motor drives
• Outstanding performance
ServoBoost, powerful control algorithms
20kHz sampling and update rate
Sinusoidal commutation
• Feedback
Two or Four channels
Standard: Digital incremental
Optional: Absolute (up to two), Sin-Cos (up to four)
• Digital I/O: 4 Registration MARK inputs,
1 PEG and 4 motor brake (24V, 0.2A) outputs
4 dedicated general purpose inputs
• Analog I/O: 2 inputs, 1 output
• Compact footprint: 121x100x48 mm3
