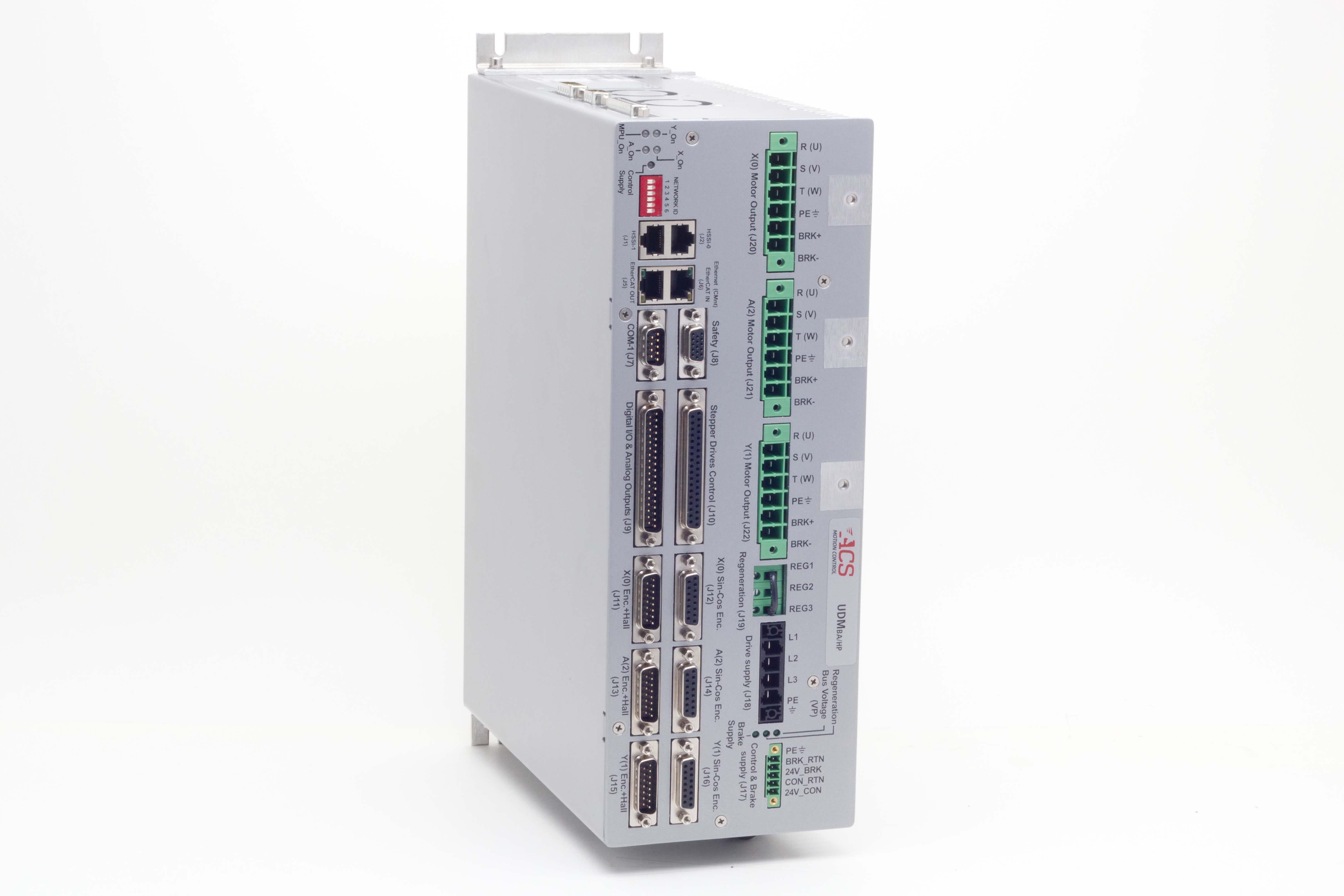

UDMhp-ba总线交流驱动器
• EtherCAT Universal Drive Modules with up to
3 built-in drives
• Two versions: Economical (BA) and High Performance (HP)
• Three built-in drives
› 85 to 265Vac, up to 15A continuous and 30A peak
current
› 4 encoders
› 20kHz sampling and update rate of all control loops
• Digital I/O
› 8/8 general purpose inputs / outputs
› 4 Registration MARK inputs, 2/8 PEG outputs
(Pulse/States)
› 3 motor brake outputs 24V/1A
• Alog I/O: 8/2
3 built-in drives
• Two versions: Economical (BA) and High Performance (HP)
• Three built-in drives
› 85 to 265Vac, up to 15A continuous and 30A peak
current
› 4 encoders
› 20kHz sampling and update rate of all control loops
• Digital I/O
› 8/8 general purpose inputs / outputs
› 4 Registration MARK inputs, 2/8 PEG outputs
(Pulse/States)
› 3 motor brake outputs 24V/1A
• Alog I/O: 8/2
