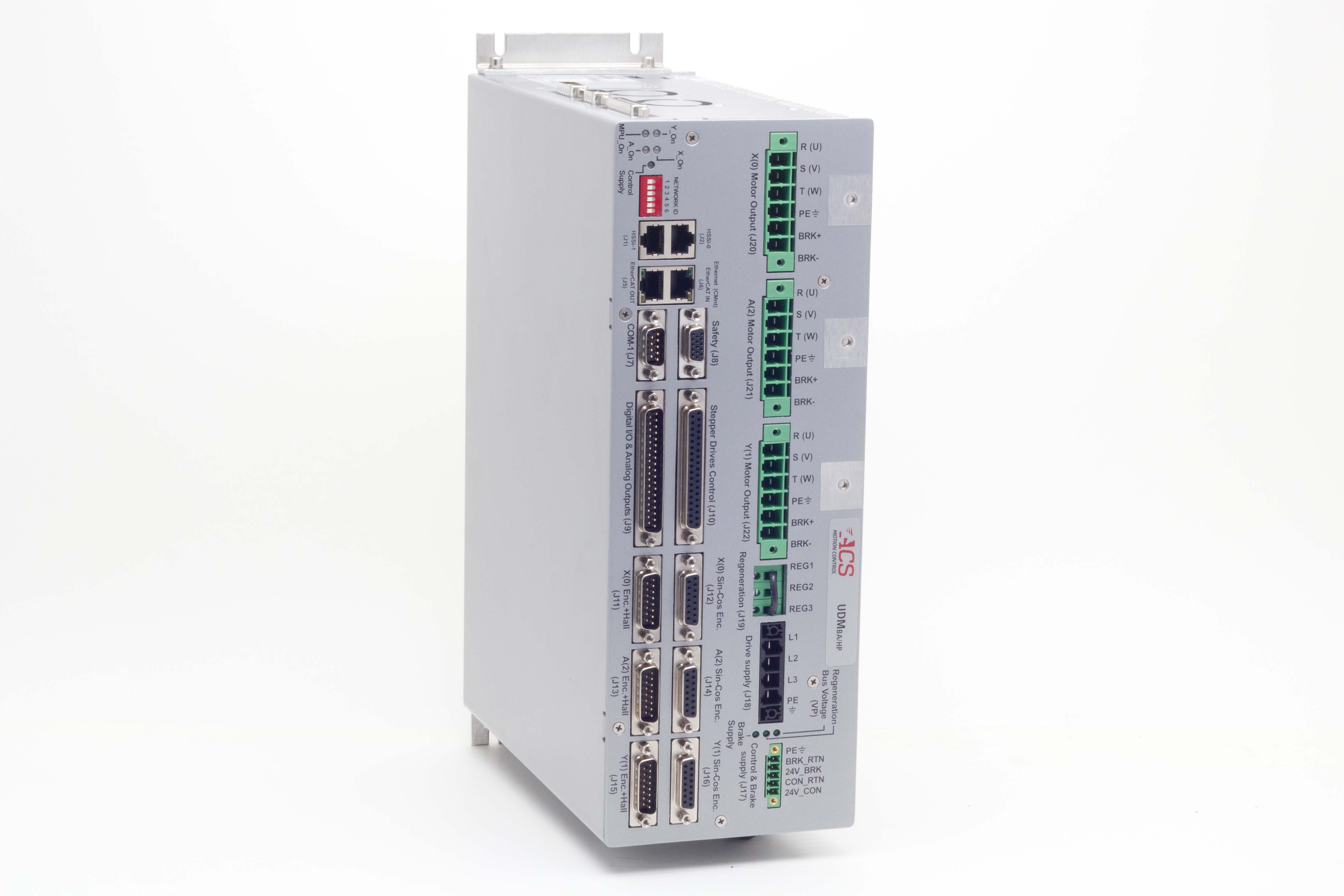

SPiiPlusCMhp-ba驱控一体控制器
![](/uploadfiles/2022/04/20220418142942428.jpg)
• Up to 32 axes and thousands of I/O
• Open Architecture – Command ACS and third party
EtherCAT drives and I/O
• Plug-in replacement for the series of SPiiPlusCM
Control Modules
• Two versions: Economical (ba) and High Performance (hp)
• Analog I/O: 8/2
• Optional built-in 4-axis Pulse/Dir interface and
Laser control
• Three built-in drives
› Up to 265Vac, 15A continuous and 30A peak current
› 4 encoders
› 20kHz sampling and update rate of all control loops
• Digital I/O
› 8/8 general purpose inputs / outputs
› 4 Registration Mark inputs, 2/8 PEG outputs
(Pulse/States)
› 3 motor brake outputs 24V/1A
• Open Architecture – Command ACS and third party
EtherCAT drives and I/O
• Plug-in replacement for the series of SPiiPlusCM
Control Modules
• Two versions: Economical (ba) and High Performance (hp)
• Analog I/O: 8/2
• Optional built-in 4-axis Pulse/Dir interface and
Laser control
• Three built-in drives
› Up to 265Vac, 15A continuous and 30A peak current
› 4 encoders
› 20kHz sampling and update rate of all control loops
• Digital I/O
› 8/8 general purpose inputs / outputs
› 4 Registration Mark inputs, 2/8 PEG outputs
(Pulse/States)
› 3 motor brake outputs 24V/1A
